◆Best working point, large flow, high efficiency.
◆Electric pump over-current components using high-strength engineering plastics, with high-quality wear-resistant mechanical seal;
◆Three phase motor apply for gasket and thread to avoid impeller reversal and loose.
◆The stator is applied by molding process with resistance moisture, heat, securit.
◆90 frame, equipped with specialized plastic mounting bracket.
◆Pump apply for low noise standa motor Single-phase with thermal protector from TI, USA.
◆Motor js with high temperature bearings. long operating life with reliability and durability.
◆Complete sepamtion of water and the axis, safe and reliable.
◆Insulation class F, Protection PX5.
◆The pump obtained the certification of CE.
Read MoreWorking conditions :
Medium temperature 5－50℃
Environmental temperature ≤40℃
Max working pressure 0.3MPa
Application :
SPA circulation system, to swim against the current in public or private swimming-pools water processing system.
Pool Pump WTB Series
Youtube Video：Pool Pump WTB Series
Other Models：Water Pump
Features :
◆Best working point, large flow, high efficiency.
◆Electric pump over-current components using high-strength engineering plastics, with high-quality wear-resistant mechanical seal;
◆Three phase motor apply for gasket and thread to avoid impeller reversal and loose.
◆The stator is applied by molding process with resistance moisture, heat, securit.
◆90 frame, equipped with specialized plastic mounting bracket.
◆Pump apply for low noise standa motor Single-phase with thermal protector from TI, USA.
◆Motor js with high temperature bearings. long operating life with reliability and durability.
◆Complete sepamtion of water and the axis, safe and reliable.
◆Insulation class F, Protection PX5.
◆The pump obtained the certification of CE.
Pool Pump WTB Series
Working conditions :
Medium temperature 5－50℃
Environmental temperature ≤40℃
Max working pressure 0.3MPa
Application :
SPA circulation system, to swim against the current in public or private swimming-pools water processing system.

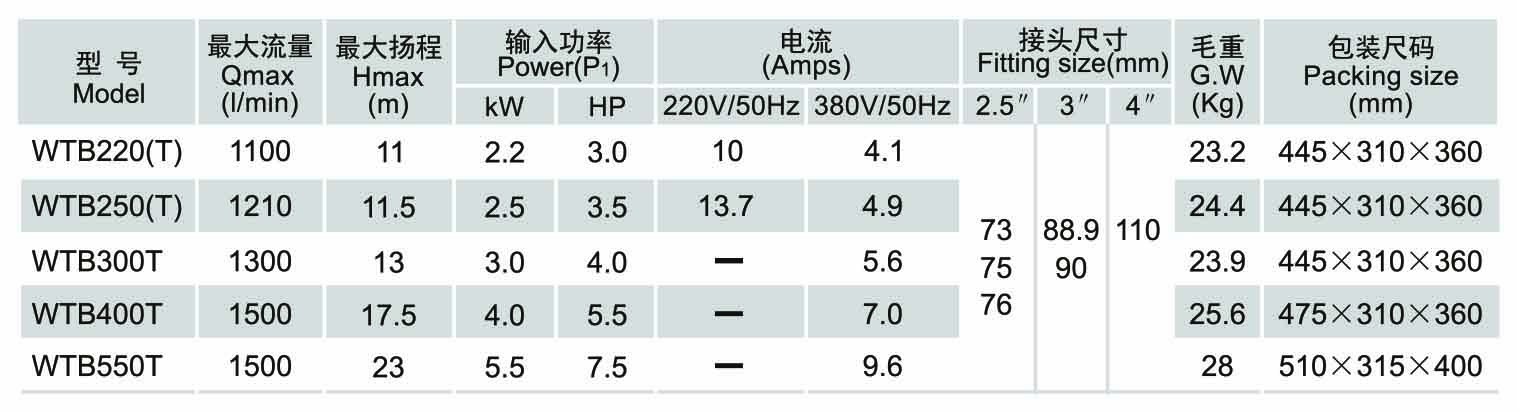

| Model | Qmax (I/min) |
Hmax (m) |
Voltage/Frequency （V/Hz） |
Power(P1) | Electric Current (Amps) |
E | Packing Size (mm) |
Number of cabinets (Qty/20) |
|
| KW | HP | ||||||||
| WTB300T | 1300 | 13 | 380/50 | 3 | 4 | 5.2 | G2¾ or4.5BUTT | 470x315x380 | 515 |
| WTB400T | 1500 | 17.5 | 4 | 5.5 | 7 | ||||
