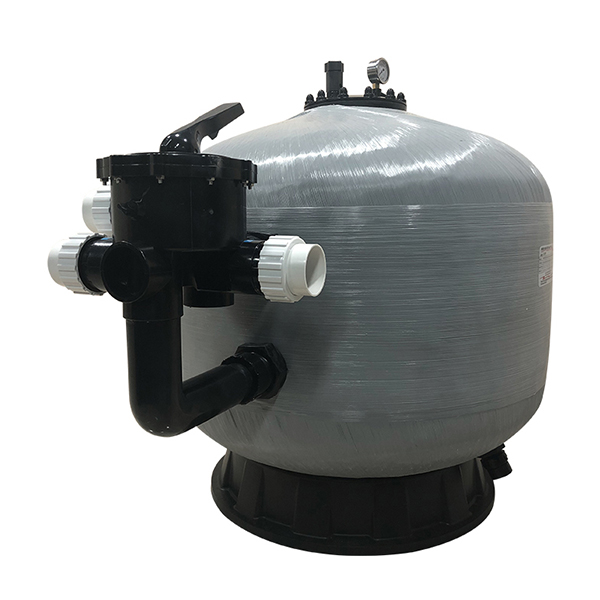

Side Mount Sand Filter SS Series

Bobbin-wound fiberglass reinforced tank is still the most popular standard in the industry after all. With UV-resistant surface finished, it is able to operate under prolong sunlight for years of reliability. "SS" series ( S400-S1200 ) filters are equipped with a six-position, clamp and screw styles multi-port vale and ABS laterals.

Read More
Free A Quote comment

Features

Side Mount Sand Filter SS Series

Bobbin-wound fiberglass reinforced tank is still the most popular standard in the industry after all. With UV-resistant surface finished, it is able to operate under prolong sunlight for years of reliability. "SS" series ( S400-S1200 ) filters are equipped with a six-position, clamp and screw styles multi-port vale and ABS laterals.

Youtube Video：Side Mount Sand Filter SS Series

Other Models：Sand Filter

SS Series Commercial Sand Filter

4 way butterfly valve NBV30-NBV80

Side Mount Sand Filter 4 way butterfly valve NBV30-NBV80 Side Mount Sand Filter 4 way butterfly valve NBV30-NBV80

5 way butterfly valve NBV30-NBV80

5 way butterfly valve NBV30-NBV80 5 way butterfly valve NBV30-NBV80



Why choose our fiberglass sand filter:
  1. Durability: Fiberglass is a durable material that can withstand harsh outdoor conditions, including exposure to sunlight and chemicals commonly used in pool maintenance. Fiberglass sand filters are less likely to corrode or degrade over time compared to other materials.
  2. Lightweight: Fiberglass filters are lightweight compared to other types of filter tanks, such as those made of metal or concrete. This makes them easier to install and handle during maintenance procedures.
  3. Chemical Resistance: Fiberglass is highly resistant to chemical corrosion, which is important in a pool environment where chlorine and other chemicals are used to maintain water quality. This resistance helps prolong the lifespan of the filter tank.
  4. Smooth Surface: Fiberglass surfaces are typically smooth, which can help reduce friction as water flows through the filter. This smoothness can improve filtration efficiency and reduce energy consumption by the pool pump.
  5. Aesthetic Appeal: Fiberglass filters often have a sleek and modern appearance, which can enhance the overall aesthetic of your pool area.
  6. Low Maintenance: Fiberglass sand filters require minimal maintenance compared to other types of filter tanks. They are less prone to rust, corrosion, and cracking, reducing the need for frequent repairs or replacements.
  7. Customizable Options: Fiberglass filters are available in a variety of sizes and configurations to suit different pool sizes and filtration requirements. This allows for greater flexibility in designing a filtration system that meets your specific needs.
  8. Easy installation: We can offer the picture or video for you to install it in your swimming pool.

Overall, choosing a fiberglass sand filter can provide you with a durable, low-maintenance, and efficient filtration solution for your swimming pool.

Technical Information
Side Mount Sand Filter Side Mount Sand Filter



Norking pre(kpa): 350

Item Number Code Diameter Φ D(mm) Inch/mm Flow Rate     (m³/h) Filtration Area (m²) Cylinder (H1) mm Intake (H2) mm Outlet (H3) mm Sewage Outlet (H4) mm Total (H5) mm Sand (kg) Package(mm) LxWxH Net Weight （kg） Gross Weight (kg)
SS400 S-01 400 1.5" 8 0.13 425 539 475 475 680 35 420x420x480 7.3 9.8
SS450 S-02 450 1.5" 10 0.16 485 599 535 535 740 50 470x470x560 8.8 11.8
SS500 S-04 500 1.5" 12 0.19 610 724 660 660 865 65 550x550x650 11.8 15.8
SS600 S-06 600 1.5" 14 0.22 620 744 680 680 885 115 620x620x680 14.5 19
SS650 S-08 650 1.5" 17 0.32 695 809 745 745 950 145 680x680x740 17.7 32.2
SS700 S-09 700 1.5" 19 0.35 715 829 765 765 970 765 720x720x750 20 25.5
SS750 S-11 750 2.0" 21 0.4 765 903 829 829 1080 225 780x780x830 22.8 29.8
SS800 S-12 800 2.0" 24 0.5 815 953 879 879 1130 275 820x820x860 25.9 33.4
SS900 S-13 900 2.0" 30 0.64 900 1038 964 964 1215 390 920x920x950 32.7 42.2
SS1050 S-15 1050 2.0" 38 0.88 1065 1203 1129 1129 1380 615 1055x1055x1150 50.9 56.4
SS1200 S-17 1200 2.0" 42 1.13 1200 1338 1264 1264 1515 920 1215x1215x1280 57.6 63.2
SS1400 S-36 1400 4" 78 1.25 \ 650 950 \ 1480 1460 1350x1350x1580 116.2 130.2
SS1600 S-37 1600 4" 100 2.01 \ 650 950 \ 1680 2180 1500x1500x1780 131.2 154.3
SS1800 S-38 1800 6" 125 2.54 \ 750 110 \ 1890 3100 1950x1950x1990 253.5 298.8
SS2000 S-39 2000 6" 153 3.14 \ 890 1290 \ 2120 4250 1950x1950x2220 312.2 357.5



Note: Height of outfall = Height of inlet

Swimming Pool Projects

Quartz Sand Filter

FAQ
Q1: How can you guarantee the quality?
A: We have a well-trained and efficent team to follow up and provide professional advises as per your requirements, during and after sales, make sure you have pleasant purchasing experience and warranty.
Q2: Can I get a sample?
A: Yes we offer free samples. Delivery cost is to be paid by clients.
Q3: Can you provide OEM service?
A: Yes, we can provide OEM, ODM and OBM servicde. We also provide installtion supporting and design service for villa hotel project, swimming pool construction and water treatment.
Q4: Why can I trust you and place order with you?
A: From 2003 to 2023 Svadon is with 20 years experience in this industry, we have served clients from more than 100 countries/areas.
